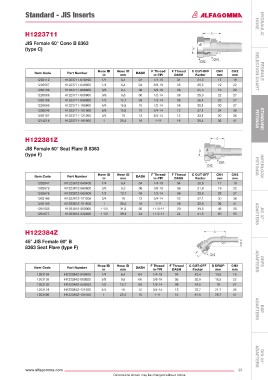

Page 99 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Standard - JIS Inserts

H1223711 hose hYDRAULIC

JIs Female 60° Cone B 8363
(type C)

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1 CH2 seLeCTIoN ChART FeRRULe
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1203110 H1223711-040400 1/4 6,4 04 1/4-19 04 24,3 17 19
1226067 H1223711-040600 1/4 6,4 04 3/8-19 06 25,5 19 22
1203109 H1223711-060600 3/8 9,5 06 3/8-19 06 25,5 19 22
1226068 H1223711-060800 3/8 9,5 06 1/2-14 08 25,3 22 27
1203108 H1223711-080800 1/2 12,7 08 1/2-14 08 26,1 22 27
1226069 H1223711-100800 5/8 15,9 10 1/2-14 08 30,1 30 27
1226549 H1223711-101200 5/8 15,9 10 3/4-14 12 27,1 24 36
1203107 H1223711-121200 3/4 19 12 3/4-14 12 33,1 30 36
1214218 H1223711-161600 1 25,4 16 1-11 16 35,4 36 41 FITTINGs sTANDARD

H122381Z
JIs Female 60° seat Flare B 8363
(type F)

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1 CH2 FITTINGs INTeRLoCK
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1202947 H122381Z-040400 1/4 6,4 04 1/4-19 04 20,8 17 19
1202879 H122381Z-060600 3/8 9,5 06 3/8-19 06 21,8 19 22
1202878 H122381Z-080800 1/2 12,7 08 1/2-14 08 23,6 22 27
1203106 H122381Z-121200 3/4 19 12 3/4-14 12 27,1 30 36
1203105 H122381Z-161600 1 25,4 16 1-11 16 32,9 36 41
1201585 H1223812-202000 1 1/4 31,8 20 1 1/4-11 20 39,5 46 50
1201677 H1223812-242400 1 1/2 38,1 24 1 1/2-11 24 41,5 50 55 ADAPTeRs JIC 37°

H122384Z

45° JIs Female 60° B
8363 seat Flare (type F)

Hose iD Hose iD F Thread F Thread C CUT-oFF D DroP CH2 ADAPTeRs oRFs
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1203104 H122384Z-040400 1/4 6,4 04 1/4-19 04 42,4 14,2 19
1203103 H122384Z-060600 3/8 9,5 06 3/8-19 06 50,8 16,5 22
1203102 H122384Z-080800 1/2 12,7 08 1/2-14 08 54,5 18 27
1203101 H122384Z-121200 3/4 19 12 3/4-14 12 70,7 21,7 36
1203100 H122384Z-161600 1 25,4 16 1-11 16 81,6 28,7 41 ADAPTeRs BsP

www.alfagomma.com 97 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
