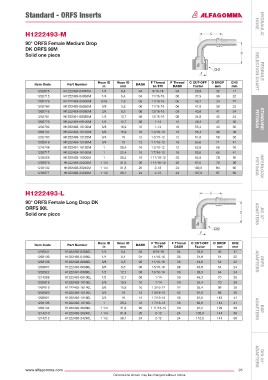

Page 97 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Standard - ORFS Inserts

H1222493-M hose hYDRAULIC

90° oRFs Female Medium Drop
DK oRFs 90M
solid one piece

Hose iD Hose iD F Thread F Thread C CUT-oFF D DroP CH2 seLeCTIoN ChART FeRRULe
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1202875 H1222493-04040M 1/4 6,4 04 9/16-18 04 29,8 32 17
1202715 H1222493-04060M 1/4 6,4 04 11/16-16 06 37,3 38 22
1202779 H1222493-05060M 5/16 7,9 05 11/16-16 06 40,7 34 22
1202780 H1222493-06060M 3/8 9,5 06 11/16-16 06 41,8 38 22
1202716 H1222493-06080M 3/8 9,5 06 13/16-16 08 43,8 41 24
1202781 H1222491-08080M 1/2 12,7 08 13/16-16 08 34,8 42 24
1202770 H1222493-08100M 1/2 12,7 08 1-14 10 48,3 47 30 FITTINGs sTANDARD
1202782 H1222493-10100M 5/8 15,9 10 1-14 10 55,4 44 30
1203137 H1222493-10120M 5/8 15,9 10 1 3/16-12 12 55,4 58 36
1202783 H1222493-12120M 3/4 19 12 1 3/16-12 12 61,6 58 36
1202916 H1222493-12160M 3/4 19 12 1 7/16-12 16 65,6 71 41
1216748 H1222491-16120M 1 25,4 16 1 3/16-12 12 62,6 58 36
1202717 H1222493-16160M 1 25,4 16 1 7/16-12 16 82,6 66 41
1203069 H1222493-16200M 1 25,4 16 1 11/16-12 20 82,6 78 50
1202876 H1222493-20200M 1 1/4 31,8 20 1 11/16-12 20 97,0 78 50
1203132 H1222493-20240M 1 1/4 31,8 20 2-12 24 102,0 84 60 FITTINGs INTeRLoCK
1202877 H1222493-24240M 1 1/2 38,1 24 2-12 24 107,8 87 60

H1222493-l

90° oRFs Female Long Drop DK
oRFs 90L
solid one piece ADAPTeRs JIC 37°

Hose iD Hose iD F Thread F Thread C CUT-oFF D DroP CH2
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1210841 H1222493-04040L 1/4 6,4 04 9/16-18 04 32,8 46 17
1203139 H1222493-04060L 1/4 6,4 04 11/16-16 06 34,8 54 22
1203138 H1222493-06060L 3/8 9,5 06 11/16-16 06 41,8 54 22 ADAPTeRs oRFs
1203057 H1222493-06080L 3/8 9,5 06 13/16-16 08 46,8 64 24
1202922 H1222491-08080L 1/2 12,7 08 13/16-16 08 38,3 64 24
1214208 H1222493-08100L 1/2 12,7 08 1-14 10 46,3 70 30
1202918 H1222493-10100L 5/8 15,9 10 1-14 10 55,4 70 30
1202919 H1222493-10120L 5/8 15,9 10 1 3/16-12 12 55,4 96 36
1202920 H1222493-12120L 3/4 19 12 1 3/16-12 12 61,6 96 36
1202921 H1222493-12160L 3/4 19 12 1 7/16-12 16 61,6 118 41
1203136 H1222493-16160L 1 25,4 16 1 7/16-12 16 82,6 114 41
1203134 H1222493-20200L 1 1/4 31,8 20 1 11/16-12 20 97,0 129 50 ADAPTeRs BsP
1214210 H1222493-20240L 1 1/4 31,8 20 2-12 24 102,0 141 60
1214212 H1222493-24240L 1 1/2 38,1 24 2-12 24 110,8 141 60

www.alfagomma.com 95 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
