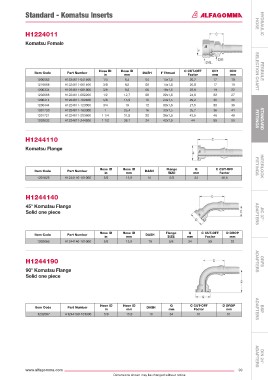

Page 101 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Standard - Komatsu Inserts

H1224011 hose hYDRAULIC

Komatsu Female

Hose iD Hose iD C CUT-oFF CH1 CH2 seLeCTIoN ChART FeRRULe
item Code Part number DAsH F Thread
in mm Factor mm mm
1200502 H1224011-041400 1/4 6,4 04 14x1,5 20,7 17 19
1216808 H1224011-061400 3/8 9,5 06 14x1,5 20,8 17 19
1200334 H1224011-061800 3/8 9,5 06 18x1,5 22,8 19 22
1202688 H1224011-082200 1/2 12,7 08 22x1,5 24,6 22 27
1200414 H1224011-102400 5/8 15,9 10 24x1,5 29,2 30 32
1200444 H1224011-123000 3/4 19 12 30x1,5 27,5 30 36
1201720 H1224011-163300 1 25,4 16 33x1,5 35,7 36 41
1201721 H1224011-203600 1 1/4 31,8 20 36x1,5 43,5 46 46
1202032 H1224011-244200 1 1/2 38,1 24 42x1,5 44 55 55 FITTINGs sTANDARD

H1244110
Komatsu Flange

Hose iD Hose iD Flange Q C CUT-oFF FITTINGs INTeRLoCK
item Code Part number DAsH
in mm siZe mm Factor
1201625 H1244110-101000 5/8 15,9 10 5/8 34 46,6

H1244140
45° Komatsu Flange
solid one piece ADAPTeRs JIC 37°

Hose iD Hose iD Flange Q C CUT-oFF D DroP
item Code Part number DAsH
in mm siZe mm Factor mm
1202066 H1244140-101000 5/8 15,9 10 5/8 34 59 23

H1244190 ADAPTeRs oRFs

90° Komatsu Flange
solid one piece

Hose iD Hose iD Q C CUT-oFF D DroP
item Code Part number DAsH
in mm mm Factor mm ADAPTeRs BsP
1202067 H1244190-101000 5/8 15,9 10 34 51 51

www.alfagomma.com 99 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
