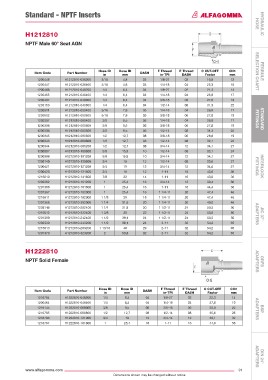

Page 93 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Standard - NPTF Inserts

H1212810 hose hYDRAULIC

NPTF Male 60° seat AGN

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1 seLeCTIoN ChART FeRRULe
item Code Part number DAsH
in mm in-TPi DAsH Factor mm
1200448 H1212810-030200 3/16 4,8 03 1/8-27 02 19,8 12
1200447 H1212810-030400 3/16 4,8 03 1/4-18 04 25,3 15
1200466 H1212810-040200 1/4 6,4 04 1/8-27 02 21,3 14
1200465 H1212810-040400 1/4 6,4 04 1/4-18 04 26,8 17
1200467 H1212810-040600 1/4 6,4 04 3/8-18 06 27,8 19
1203150 H1212810-040800 1/4 6,4 04 1/2-14 08 31,3 22
1200511 H1212810-050400 5/16 7,9 05 1/4-18 04 26,8 17
1200512 H1212810-050600 5/16 7,9 05 3/8-18 06 27,8 19
1200307 H1212810-060400 3/8 9,5 06 1/4-18 04 26,8 17 FITTINGs sTANDARD
1200308 H1212810-060600 3/8 9,5 06 3/8-18 06 27,8 19
1200306 H1212810-060800 3/8 9,5 06 1/2-14 08 31,3 22
1200345 H1212810-080600 1/2 12,7 08 3/8-18 06 28,6 19
1200343 H1212810-080800 1/2 12,7 08 1/2-14 08 32,1 22
1200344 H1212810-081200 1/2 12,7 08 3/4-14 12 34,1 27
1200387 H1212810-100800 5/8 15,9 10 1/2-14 08 33,1 24
1200388 H1212810-101200 5/8 15,9 10 3/4-14 12 34,1 27
1203149 H1212810-120800 3/4 19 12 1/2-14 08 33,6 27
1200421 H1212810-121200 3/4 19 12 3/4-14 12 34,6 27 FITTINGs INTeRLoCK
1200420 H1212810-121600 3/4 19 12 1-11 16 43,6 36
1216610 H1212810-141600 7/8 22 14 1-11 16 43,6 36
1202282 H1212810-161200 1 25,4 16 3/4-14 12 39,4 36
1201366 H1212810-161600 1 25,4 16 1-11 16 44,4 36
1201367 H1212810-162000 1 25,4 16 1 1/4-11 20 47,4 46
1216611 H1212810-182000 1 1/8 29 18 1 1/4-11 20 47,4 46
1201368 H1212810-202000 1 1/4 31,8 20 1 1/4-11 20 49,0 46
1203148 H1212810-202400 1 1/4 31,8 20 1 1/2-11 24 50,5 50
1216612 H1212810-222400 1 3/8 35 22 1 1/2-11 24 50,5 50 ADAPTeRs JIC 37°
1201369 H1212810-242400 1 1/2 38,1 24 1 1/2-11 24 50,5 50
1202539 H1212810-243200 1 1/2 38,1 24 2-11 32 54,2 65
1216613 H1212810-293200 1 13/16 46 29 2-11 32 54,2 65
1201370 H1212810-323200 2 50,8 32 2-11 32 54,2 65

H1222810

NPTF solid Female ADAPTeRs oRFs

Hose iD Hose iD F Thread F Thread C CUT-oFF CH2
item Code Part number DAsH
in mm in-TPi DAsH Factor mm
1216794 H1222810-040200 1/4 6,4 04 1/8-27 02 22,3 14
1200464 H1222810-040400 1/4 6,4 04 1/4-18 04 27,8 19
1219145 H1222810-060600 3/8 9,5 06 3/8-18 06 28,8 22 ADAPTeRs BsP
1216795 H1222810-080800 1/2 12,7 08 1/2-14 08 35,6 25
1216796 H1222810-121200 3/4 19 12 3/4-14 12 38,1 32
1216797 H1222810-161600 1 25,4 16 1-11 16 44,9 38

www.alfagomma.com 91 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
