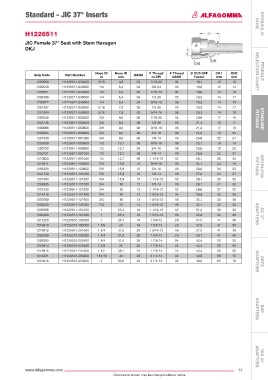

P. 89
Standard - JIC 37° Inserts
H1226511 hose hYDRAULIC
JIC Female 37° seat with stem hexagon
DKJ
Hose iD Hose iD F Thread F Thread C CUT-oFF CH1 CH2 seLeCTIoN ChART FeRRULe
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1200599 H1226511-030400 3/16 4,8 03 7/16-20 04 18,1 12 16
1226559 H1226511-040300 1/4 6,4 04 3/8-24 03 19,8 12 14
1200621 H1226511-040400 1/4 6,4 04 7/16-20 04 19,6 14 16
1202406 H1226511-040500 1/4 6,4 04 1/2-20 05 20,3 14 17
1200622 H1226511-040600 1/4 6,4 04 9/16-18 06 20,3 14 19
1201497 H1226511-050500 5/16 7,9 05 1/2-20 05 20,3 14 17
1201264 H1226511-050600 5/16 7,9 05 9/16-18 06 20,3 14 19
1203246 H1226511-060400 3/8 9,5 06 7/16-20 04 20,6 17 16 FITTINGs sTANDARD
1223146 H1226511-060500 3/8 9,5 06 1/2-20 05 21,3 16 17
1200686 H1226511-060600 3/8 9,5 06 9/16-18 06 21,3 17 19
1200685 H1226511-060800 3/8 9,5 06 3/4-16 08 24,8 19 25
1201340 H1226511-061000 3/8 9,5 06 7/8-14 10 25,8 22 27
1203090 H1226511-080600 1/2 12,7 08 9/16-18 06 23,1 19 19
1200720 H1226511-080800 1/2 12,7 08 3/4-16 08 25,6 19 25
1200721 H1226511-081000 1/2 12,7 08 7/8-14 10 26,6 22 27
1210833 H1226511-081200 1/2 12,7 08 1 1/16-12 12 28,1 25 32
1216811 H1226511-100600 5/8 15,9 10 9/16-18 06 24,1 24 19
1203329 H1226511-100800 5/8 15,9 10 3/4-16 08 26,6 24 25 FITTINGs INTeRLoCK
1201728 H1226511-101000 5/8 15,9 10 7/8-14 10 27,6 24 27
1201464 H1226511-101200 5/8 15,9 10 1 1/16-12 12 28,1 25 32
1202895 H1226511-121000 3/4 19 12 7/8-14 10 28,1 27 32
1201333 H1226511-121200 3/4 19 12 1 1/16-12 12 28,6 27 32
1214219 H1226511-121400 3/4 19 12 1 3/16-12 14 29,9 32 36
1203089 H1226511-121600 3/4 19 12 1 5/16-12 16 32,1 32 38
1203243 H1226511-141600 7/8 22 14 1 5/16-12 16 32,1 32 38
1203088 H1226511-161200 1 25,4 16 1 1/16-12 12 31,4 32 32
1202408 H1226511-161600 1 25,4 16 1 5/16-12 16 32,9 32 38 ADAPTeRs JIC 37°
1214220 H1226512-162000 1 25,4 16 1 5/8-12 20 37,5 41 50
1216813 H1226512-182000 1 1/8 29 18 1 5/8-12 20 37,5 41 50
1216812 H1226511-201600 1 1/4 31,8 20 1 5/16-12 16 37,5 41 38
1202483 H1226512-202000 1 1/4 31,8 20 1 5/8-12 20 39,1 41 50
1226093 H1226512-202400 1 1/4 31,8 20 1 7/8-14 24 43,4 50 55
1216814 H1226512-222400 1 3/8 35 22 1 7/8-14 24 43,4 50 55
1216815 H1226512-242400 1 1/2 38,1 24 1 7/8-14 24 43,4 50 55
1214221 H1226512-293200 1 13/16 46 29 2 1/2-12 32 49,0 65 70
1216816 H1226512-323200 2 50,8 32 2 1/2-12 32 49,0 65 70 ADAPTeRs oRFs
BsP
ADAPTeRs
www.alfagomma.com 87 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
