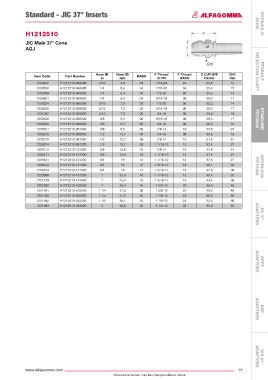

Page 87 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Standard - JIC 37° Inserts

H1212510 hose hYDRAULIC

JIC Male 37° Cone
AGJ

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1 seLeCTIoN ChART FeRRULe
item Code Part number DAsH
in mm in-TPi DAsH Factor mm
1200457 H1212510-030400 3/16 4,8 03 7/16-20 04 23,8 12
1200500 H1212510-040400 1/4 6,4 04 7/16-20 04 25,3 12
1200499 H1212510-040500 1/4 6,4 04 1/2-20 05 25,3 14
1200501 H1212510-040600 1/4 6,4 04 9/16-18 06 26,3 17
1200534 H1212510-050500 5/16 7,9 05 1/2-20 05 25,3 14
1200535 H1212510-050600 5/16 7,9 05 9/16-18 06 26,3 17
1201087 H1212510-050800 5/16 7,9 05 3/4-16 08 29,8 19
1200332 H1212510-060600 3/8 9,5 06 9/16-18 06 26,3 17 FITTINGs sTANDARD
1200330 H1212510-060800 3/8 9,5 06 3/4-16 08 29,8 19
1200331 H1212510-061000 3/8 9,5 06 7/8-14 10 33,8 24
1200375 H1212510-080800 1/2 12,7 08 3/4-16 08 30,6 19
1200376 H1212510-081000 1/2 12,7 08 7/8-14 10 34,6 24
1200374 H1212510-081200 1/2 12,7 08 1 1/16-12 12 37,1 27
1200413 H1212510-101000 5/8 15,9 10 7/8-14 10 34,6 24
1200411 H1212510-101200 5/8 15,9 10 1 1/16-12 12 37,1 27
1200441 H1212510-121200 3/4 19 12 1 1/16-12 12 37,6 27
1200442 H1212510-121400 3/4 19 12 1 3/16-12 14 40,1 32 FITTINGs INTeRLoCK
1200443 H1212510-121600 3/4 19 12 1 5/16-12 16 42,6 36
1222989 H1212510-161200 1 25,4 16 1 1/16-12 12 40,4 32
1201379 H1212510-161600 1 25,4 16 1 5/16-12 16 43,4 36
1201380 H1212510-162000 1 25,4 16 1 5/8-12 20 46,9 46
1201381 H1212510-202000 1 1/4 31,8 20 1 5/8-12 20 48,5 46
1201785 H1212510-202400 1 1/4 31,8 20 1 7/8-12 24 52,5 50
1201382 H1212510-242400 1 1/2 38,1 24 1 7/8-12 24 52,5 50
1201383 H1212510-323200 2 50,8 32 2 1/2-12 32 52,0 65 ADAPTeRs JIC 37°

oRFs
ADAPTeRs

DIN 24°
ADAPTeRs
www.alfagomma.com 85 ADAPTeRs BsP
Dimensions shown may be changed without notice
