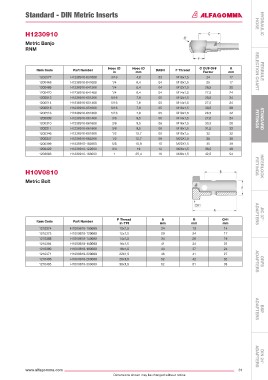

Standard - DIN Metric Inserts

H1230910 hose hYDRAULIC

Metric Banjo
RNM

Hose iD Hose iD C CUT-oFF K
item Code Part number DAsH F Thread
in mm Factor mm seLeCTIoN ChART FeRRULe
1202577 H1230910-031000 3/16 4,8 03 M10x1,5 24 17
1200468 H1230910-041000 1/4 6,4 04 M10x1,5 25 17
1200469 H1230910-041200 1/4 6,4 04 M12x1,5 28,5 20
1200470 H1230910-041400 1/4 6,4 04 M14x1,5 27,5 24
1200513 H1230910-051200 5/16 7,9 05 M12x1,5 28,5 24
1200514 H1230910-051400 5/16 7,9 05 M14x1,5 27,5 24
1200515 H1230910-051600 5/16 7,9 05 M16x1,5 30,5 28
1200516 H1230910-051800 5/16 7,9 05 M18x1,5 28,5 32
1200309 H1230910-061400 3/8 9,5 06 M14x1,5 27,5 24 FITTINGs sTANDARD
1200310 H1230910-061600 3/8 9,5 06 M16x1,5 30,5 28
1200311 H1230910-061800 3/8 9,5 06 M18x1,5 31,5 32
1200346 H1230910-081800 1/2 12,7 08 M18x1,5 32 32
1200347 H1230910-082200 1/2 12,7 08 M22X1,5 35 39
1200389 H1230910-102200 5/8 15,9 10 M22X1,5 35 39
1200422 H1230910-122600 3/4 19 12 M26x1,5 38,5 46
1203083 H1230910-163000 1 25,4 16 M30x1,5 42,5 54

H10v0810 FITTINGs INTeRLoCK
Metric Bolt

F Thread A b CH1 ADAPTeRs JIC 37°
item Code Part number
in-TPi mm mm mm
1210374 H10V0810-100000 10x1,5 24 19 14
1210375 H10V0810-120000 12x1,5 29 24 17
1210368 H10V0810-140000 14x1,5 34 28 19
1210384 H10V0810-160000 16x1,5 41 34 22
1210369 H10V0810-180000 18x1,5 44 37 24
1210371 H10V0810-220000 22X1,5 48 41 27
1210406 H10V0810-260000 26x1,5 52 42 32
1210405 H10V0810-300000 30x1,5 62 51 38 ADAPTeRs oRFs

BsP
ADAPTeRs

www.alfagomma.com 81 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
