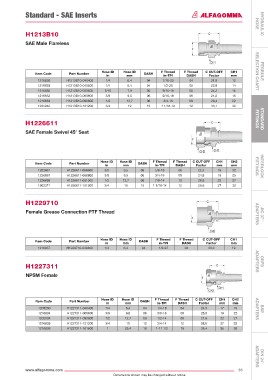

Page 85 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Standard - SAE Inserts

H1213b10 hose hYDRAULIC

sAe Male Flareless

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1 seLeCTIoN ChART FeRRULe
item Code Part number DAsH
in mm in-TPi DAsH Factor mm
1216628 H1213B10-040400 1/4 6,4 04 7/16-20 04 21,8 12
1216629 H1213B10-040500 1/4 6,4 04 1/2-20 05 22,8 14
1216630 H1213B10-050600 5/16 7,9 05 9/16-18 06 24,2 16
1216632 H1213B10-060600 3/8 9,5 06 9/16-18 06 24,2 16
1216633 H1213B10-080800 1/2 12,7 08 3/4-16 08 28,4 22
1225942 H1213B10-121200 3/4 19 12 1 1/16-12 12 33,1 30

H1226611 FITTINGs sTANDARD

sAe Female swivel 45° seat

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1 CH2
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm FITTINGs INTeRLoCK
1202661 H1226611-060600 3/8 9,5 06 5/8-18 06 22,3 19 22
1226097 H1226611-060800 3/8 9,5 06 3/4-16 08 24,8 19 25
1226098 H1226611-081000 1/2 12,7 08 7/8-14 10 26,6 22 27
1202371 H1226611-121200 3/4 19 12 1 1/16-14 12 29,6 27 32

H1229710

Female Grease Connection PTF Thread ADAPTeRs JIC 37°

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1
item Code Part number DAsH
in mm in-TPi DAsH Factor mm
1216837 H1229710-040400 1/4 6,4 04 1/2-27 04 23,3 19

H1227311 ADAPTeRs oRFs
NPsM Female

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1 CH2
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1203280 H1227311-040400 1/4 6,4 04 1/4-18 04 24,3 17 19 ADAPTeRs BsP
1216834 H1227311-060600 3/8 9,5 06 3/8-18 06 25,8 19 22
1202084 H1227311-080800 1/2 12,7 08 1/2-14 08 27,6 22 27
1216835 H1227311-121200 3/4 19 12 3/4-14 12 28,6 27 32
1216836 H1227311-161600 1 25,4 16 1-11 1/2 16 35,4 36 38

www.alfagomma.com 83 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
