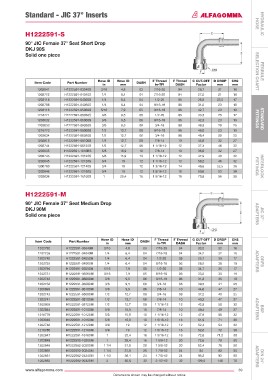

Standard - JIC 37° Inserts

H1222591-s hose hYDRAULIC

90° JIC Female 37° seat short Drop
DKJ 90s
solid one piece

Hose iD Hose iD F Thread F Thread C CUT-oFF D DroP CH2 seLeCTIoN ChART FeRRULe
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1202841 H1222591-03040S 3/16 4,8 03 7/16-20 04 26,7 21 16
1202772 H1222591-04040S 1/4 6,4 04 7/16-20 04 27,0 21 16
1203118 H1222591-04050S 1/4 6,4 04 1/2-20 05 26,5 23,5 17
1202788 H1222591-04060S 1/4 6,4 04 9/16-18 06 31,0 23 19
1203116 H1222591-05060S 5/16 7,9 05 9/16-18 06 42,7 23 19
1216771 H1222591-06050S 3/8 9,5 06 1/2-20 05 33,3 25 17
1203032 H1222591-06060S 3/8 9,5 06 9/16-18 06 42,3 23 19 FITTINGs sTANDARD
1203033 H1222591-06080S 3/8 9,5 06 3/4-16 08 48,8 29 25
1216773 H1222591-08060S 1/2 12,7 08 9/16-18 06 48,0 23 19
1203034 H1222591-08080S 1/2 12,7 08 3/4-16 08 46,4 29 25
1202815 H1222591-08100S 1/2 12,7 08 7/8-14 10 45,8 32 27
1202744 H1222591-08120S 1/2 12,7 08 1 1/16-12 12 37,3 46 32
1203035 H1222591-1010BS 5/8 15,9 10 7/8-14 10 36,5 32 27
1202745 H1222591-10120S 5/8 15,9 10 1 1/16-12 12 47,9 48 32
1202845 H1222591-12120S 3/4 19 12 1 1/16-12 12 58,2 46 32
1200780 H1222591-12140S 3/4 19 12 1 3/16-12 14 49,6 52,5 36 FITTINGs INTeRLoCK
1202846 H1222591-12160S 3/4 19 12 1 5/16-12 16 53,6 53 38
1203036 H1222591-16160S 1 25,4 16 1 5/16-12 16 70,9 56 38

H1222591-M
90° JIC Female 37° seat Medium Drop
DKJ 90M
solid one piece ADAPTeRs JIC 37°

Hose iD Hose iD F Thread F Thread C CUT-oFF D DroP CH2
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1202792 H1222591-03040M 3/16 4,8 03 7/16-20 04 33,5 32 16
1202739 H1222591-04040M 1/4 6,4 04 7/16-20 04 34,2 32 16
1202740 H1222591-04050M 1/4 6,4 04 1/2-20 05 25,7 30 17
1202793 H1222591-04060M 1/4 6,4 04 9/16-18 06 28,5 38 19 ADAPTeRs oRFs
1202794 H1222591-05050M 5/16 7,9 05 1/2-20 05 34,7 35 17
1202731 H1222591-05060M 5/16 7,9 05 9/16-18 06 33,2 35 19
1202742 H1222591-06060M 3/8 9,5 06 9/16-18 06 31,3 35 19
1202732 H1222591-06080M 3/8 9,5 06 3/4-16 08 39,5 41 25
1200693 H1222591-06100M 3/8 9,5 06 7/8-14 10 44,6 47 27
1202743 H1222591-08080M 1/2 12,7 08 3/4-16 08 37,2 40 25
1202741 H1222591-08100M 1/2 12,7 08 7/8-14 10 43,3 47 27
1202869 H1222591-08120M 1/2 12,7 08 1 1/16-12 12 42,8 58 32
1202844 H1222591-10100M 5/8 15,9 10 7/8-14 10 49,4 48 27 ADAPTeRs BsP
1216778 H1222591-10120M 5/8 15,9 10 1 1/16-12 12 47,9 58 32
1203340 H1222591-10160M 5/8 15,9 10 1 5/16-12 16 51,9 71 38
1202746 H1222591-12120M 3/4 19 12 1 1/16-12 12 52,4 54 32
1216780 H1222591-12160M 3/4 19 12 1 5/16-12 16 52,6 72 38
1202847 H1222591-16160M 1 25,4 16 1 5/16-12 16 72,6 71,5 38
1202848 H1222592-16200M 1 25,4 16 1 5/8-12 20 72,6 78 50
1202849 H1222592-20200M 1 1/4 31,8 20 1 5/8-12 20 82,4 78 50
1202850 H1222592-20240M 1 1/4 31,8 20 1 7/8-12 24 94 82 55
1202851 H1222592-24240M 1 1/2 38,1 24 1 7/8-12 24 95,3 92 55 ADAPTeRs DIN 24°
1202852 H1222592-32320M 2 50,8 32 2 1/2-12 32 129,5 140 70
