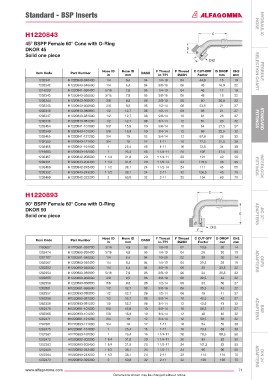

Page 73 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Standard - BSP Inserts

H1220843 hose hYDRAULIC

45° BsPP Female 60° Cone with o-Ring
DKoR 45
solid one piece

Hose iD Hose iD F Thread F Thread C CUT-oFF D DroP CH2 seLeCTIoN ChART FeRRULe
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1202341 H1220843-040400 1/4 6,4 04 1/4-19 04 44,5 15 19
1202342 H1220843-040600 1/4 6,4 04 3/8-19 06 43 16,9 22
1214200 H1220841-050400 5/16 7,9 05 1/4-19 04 45 17 19
1202343 H1220843-050600 5/16 7,9 05 3/8-19 06 48 18 22
1202344 H1220843-060600 3/8 9,5 06 3/8-19 06 50 20,5 22
1202345 H1220843-060800 3/8 9,5 06 1/2-14 08 53,5 21 27
1202346 H1220843-080800 1/2 12,7 08 1/2-14 08 56 21 27
1202347 H1220843-081000 1/2 12,7 08 5/8-14 10 61 23 27
1202348 H1220843-081200 1/2 12,7 08 3/4-14 12 61 23 32 FITTINGs sTANDARD
1202464 H1220841-101000 5/8 15,9 10 5/8-14 10 64 21,5 27
1202349 H1220843-101200 5/8 15,9 10 3/4-14 12 69 22,5 32
1202465 H1220841-121200 3/4 19 12 3/4-14 12 67,6 28 32
1202350 H1220843-121600 3/4 19 12 1-11 16 77,5 31,5 38
1202466 H1220841-161600 1 25,4 16 1-11 16 72,5 34 38
1216663 H1220843-162000 1 25,4 16 1 1/4-11 20 102 47,5 50
1202467 H1220842-202000 1 1/4 31,8 20 1 1/4-11 20 101 40 50
1202351 H1220843-202400 1 1/4 31,8 20 1 1/2-14 24 118,5 38 55
1202468 H1220842-242400 1 1/2 38,1 24 1 1/2-14 24 111 46 55 FITTINGs INTeRLoCK
1202352 H1220843-243200 1 1/2 38,1 24 2-11 32 126,5 45 70
1202469 H1220842-323200 2 50,8 32 2-11 32 154 60 70

H1220893

90° BsPP Female 60° Cone with o-Ring
DKoR 90
solid one piece ADAPTeRs JIC 37°

Hose iD Hose iD F Thread F Thread C CUT-oFF D DroP CH2
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1200607 H1220591-030200 3/16 4,8 03 1/8-28 02 23,8 30 14
1202474 H1220893-030400 3/16 4,8 03 1/4-19 04 28 30 19
1201707 H1220591-040200 1/4 6,4 04 1/8-28 02 29 30 14
1202367 H1220893-040400 1/4 6,4 04 1/4-19 04 29,3 29 19 ADAPTeRs oRFs
1202353 H1220893-040600 1/4 6,4 04 3/8-19 06 28 30,5 22
1202354 H1220893-050600 5/16 7,9 05 3/8-19 06 34 35,5 22
1202355 H1220893-060600 3/8 9,5 06 3/8-19 06 39,5 42 22
1202356 H1220893-060800 3/8 9,5 06 1/2-14 08 33 36 27
1202881 H1220891-080600 1/2 12,7 08 3/8-19 06 35,3 43 22
1202357 H1220893-080800 1/2 12,7 08 1/2-14 08 40 41 27
1202358 H1220893-081000 1/2 12,7 08 5/8-14 10 42,5 43 27
1202359 H1220893-081200 1/2 12,7 08 3/4-14 12 42,5 43 32
1202470 H1220891-101000 5/8 15,9 10 5/8-14 10 50,2 47 27 ADAPTeRs BsP
1202360 H1220893-101200 5/8 15,9 10 3/4-14 12 48 46 32
1202471 H1220891-121200 3/4 19 12 3/4-14 12 53,5 53 32
1202361 H1220893-121600 3/4 19 12 1-11 16 54 50 38
1202475 H1220891-161600 1 25,4 16 1-11 16 73,4 69 38
1202362 H1220893-162000 1 25,4 16 1 1/4-11 20 78,5 88,5 50
1202472 H1220892-202000 1 1/4 31,8 20 1 1/4-11 20 83 83 50
1202363 H1220893-202400 1 1/4 31,8 20 1 1/2-11 24 101,5 83 55
1202456 H1220892-242400 1 1/2 38,1 24 1 1/2-11 24 96 96 55
1202364 H1220893-243200 1 1/2 38,1 24 2-11 32 114 110 70 ADAPTeRs DIN 24°
1202473 H1220892-323200 2 50,8 32 2-11 32 138 136 70

www.alfagomma.com 71
Dimensions shown may be changed without notice
