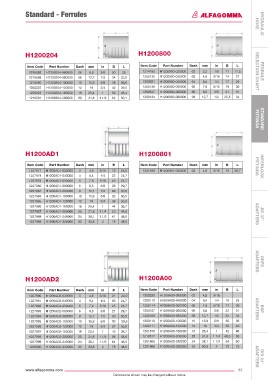

Page 69 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Standard - Ferrules hose hYDRAULIC

H1200204 H1200800

item Code Part number Dash mm in b l item Code Part number Dash mm in b l
1216588 H1200204-060000 06 9,5 3/8 30 28 1214180 H1200800-020000 02 3,2 1/8 11 17,5 seLeCTIoN ChART FeRRULe
1216589 H1200204-080000 08 12,7 1/2 34 33,9 1200135 H1200800-030000 03 4,8 3/16 14 27
1216590 H1200204-100000 10 15,9 5/8 38 36,6 1200921 H1200800-040000 04 6,4 1/4 17 29
1203322 H1200204-120000 12 19 3/4 42 39,5 1200136 H1200800-050000 05 7,9 5/16 19 30
1203323 H1200204-160000 16 25,4 1 50 45,4 1202547 H1200800-060000 06 9,5 3/8 21 31
1216591 H1200204-200000 20 31,8 1 1/2 62 50,1 1200134 H1200800-080000 08 12,7 1/2 25,5 34 FITTINGs sTANDARD

H1200AD1 H1200801

item Code Part number Dash mm in b l item Code Part number Dash mm in b l FITTINGs INTeRLoCK
1227977 H1200AD1-030000 3 4,8 3/16 19 24,0 1201499 H1200801-030000 03 4,8 3/16 15 26,7
1227978 H1200AD1-040000 4 6,4 1/4 22 24,7
1227979 H1200AD1-050000 5 7,9 5/16 23 24,7
1227980 H1200AD1-060000 6 9,5 3/8 26 29,7
1227981 H1200AD1-080000 8 12,7 1/2 29 30,5
1227983 H1200AD1-100000 10 15,9 5/8 32 30,5
1227985 H1200AD1-120000 12 19 3/4 36 36,0
1227986 H1200AD1-160000 16 25,4 1 44 36,7
1227987 H1200AD1-200000 20 31,8 1 1/4 53 48,6
1227988 H1200AD1-240000 24 38,1 1 1/2 61 48,6 ADAPTeRs JIC 37°
1227989 H1200AD1-320000 32 50,8 2 75 48,6

H1200AD2 H1200A00 ADAPTeRs oRFs

item Code Part number Dash mm in b l item Code Part number Dash mm in b l
1227990 H1200AD2-030000 3 4,8 3/16 21 24,0 1202320 H1200A00-030000 03 4,8 3/16
1227991 H1200AD2-040000 4 6,4 1/4 23 24,7 1200112 H1200A00-040000 04 6,4 1/4 15 29
1227992 H1200AD2-050000 5 7,9 5/16 25 24,7 1200114 H1200A00-050000 05 7,9 5/16 17 30
1227993 H1200AD2-060000 6 9,5 3/8 27 29,7 1200107 H1200A00-060000 06 9,5 3/8 22 31 ADAPTeRs BsP
1227994 H1200AD2-080000 8 12,7 1/2 30 30,5 1200109 H1200A00-080000 08 12,7 1/2 25 34
1227995 H1200AD2-100000 10 15,9 5/8 33 30,5 1200110 H1200A00-100000 10 15,9 5/8 30 36
1227996 H1200AD2-120000 12 19 3/4 37 36,0 1200111 H1200A00-120000 12 19 3/4 35 40
1227997 H1200AD2-160000 16 25,4 1 45 36,7 1201870 H1200A00-160000 16 25,4 1 42 46
1227998 H1200AD2-200000 20 31,8 1 1/4 56 48,6 1218517 H1200A00-200000 20 31,8 1 1/4 48,3 53
1227999 H1200AD2-240000 24 38,1 1 1/2 64 48,5 1201865 H1200A00-240000 24 38,1 1 1/2 54 60
1228000 H1200AD2-320000 32 50,8 2 78 48,6 1201866 H1200A00-320000 32 50,8 2 73 73 ADAPTeRs DIN 24°

www.alfagomma.com 67
Dimensions shown may be changed without notice
