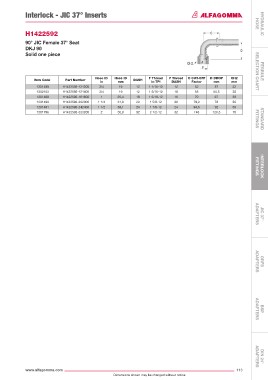

Interlock - JIC 37° Inserts

H1422592 hose hYDRAULIC

90° JIC Female 37° seat
DKJ 90
solid one piece

Hose iD Hose iD F Thread F Thread C CUT-oFF D DroP CH2 seLeCTIoN ChART FeRRULe
item Code Part number DAsH
in mm in-TPi DAsH Factor mm mm
1201488 H1422592-121200 3/4 19 12 1 1/16-12 12 52 57 32
1202103 H1422592-121600 3/4 19 12 1 5/16-12 16 58 60,5 38
1201489 H1422592-161600 1 25,4 16 1 5/16-12 16 70 67 38
1201490 H1422592-202000 1 1/4 31,8 20 1 5/8-12 20 79,2 78 50
1201491 H1422592-242400 1 1/2 38,1 24 1 7/8-12 24 94,5 92 55
1201796 H1422592-323200 2 50,8 32 2 1/2-12 32 146 120,5 70 FITTINGs sTANDARD

FITTINGs
INTeRLoCK

JIC 37°
ADAPTeRs

BsP
ADAPTeRs

DIN 24°
ADAPTeRs
www.alfagomma.com 113 ADAPTeRs oRFs
Dimensions shown may be changed without notice
