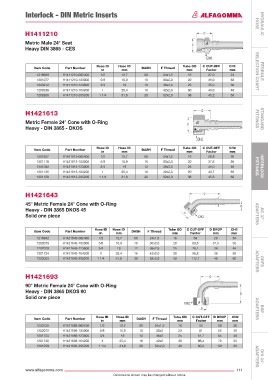

Interlock - DIN Metric Inserts

H1411210 hose hYDRAULIC

Metric Male 24° seat
heavy DIN 3865 - Ces

Hose iD Hose iD Tube oD C CUT-oFF CH1
item Code Part number DAsH F Thread
in mm mm Factor mm seLeCTIoN ChART FeRRULe
1216929 H1411210-082400 1/2 12,7 08 24x1,5 16 27,0 24
1201077 H1411210-103000 5/8 15,9 10 30x2,0 20 31,0 32
1200212 H1411210-123600 3/4 19 12 36x2,0 25 35,0 36
1200236 H1411210-164200 1 25,4 16 42x2,0 30 40,0 46
1200260 H1411210-205200 1 1/4 31,8 20 52x2,0 38 45,2 55

H1421613

Metric Female 24° Cone with o-Ring FITTINGs sTANDARD
heavy - DIN 3865 - DKos

Hose iD Hose iD Tube oD C CUT-oFF CH2
item Code Part number DAsH F Thread
in mm mm Factor mm
1201857 H1421613-082400 1/2 12,7 08 24x1,5 16 29,8 30
1201118 H1421613-103000 5/8 15,9 10 30x2,0 20 37,6 36
1201092 H1421613-123600 3/4 19 12 36x2,0 25 41,0 46 FITTINGs INTeRLoCK
1201125 H1421613-164200 1 25,4 16 42x2,0 30 40,7 50
1201129 H1421613-205200 1 1/4 31,8 20 52x2,0 38 45,3 60

H1421643

45° Metric Female 24° Cone with o-Ring
heavy - DIN 3865 DKos 45
solid one piece ADAPTeRs JIC 37°

Hose iD Hose iD Tube oD C CUT-oFF D DroP CH2
item Code Part number DAsH F Thread
in mm mm Factor mm mm
1216942 H1421643-082400 1/2 12,7 08 24x1,5 16 59 29 30
1202073 H1421643-103000 5/8 15,9 10 30x2,0 20 60,5 31,5 36
1202079 H1421643-123600 3/4 19 12 36x2,0 25 78,1 36 46
1201724 H1421643-164200 1 25,4 16 42x2,0 30 96,8 38 50
1202003 H1421643-205200 1 1/4 31,8 20 52x2,0 38 112,7 48 60 ADAPTeRs oRFs

H1421693
90° Metric Female 24° Cone with o-Ring
heavy - DIN 3865 DKos 90
solid one piece

Hose iD Hose iD Tube oD C CUT-oFF D DroP CH2 ADAPTeRs BsP
item Code Part number DAsH F Thread
in mm mm Factor mm mm
1203125 H1421693-082400 1/2 12,7 08 24x1,5 16 55 50 30
1202072 H1421693-103000 5/8 15,9 10 30x2 20 51 55 36
1201723 H1421693-123600 3/4 19 12 36x2 25 61,7 65 46
1201740 H1421693-164200 1 25,4 16 42x2 30 86,4 79 50
1201059 H1421693-205200 1 1/4 31,8 20 52x2,0 38 90,9 101 60 ADAPTeRs DIN 24°

www.alfagomma.com 111
Dimensions shown may be changed without notice
