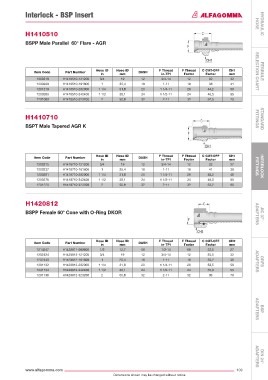

Interlock - BSP Insert

H1410510 hose hYDRAULIC

BsPP Male Parallel 60° Flare - AGR

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1
item Code Part number DAsH seLeCTIoN ChART FeRRULe
in mm in-TPi Factor Factor mm
1200218 H1410510-121200 3/4 19 12 3/4-14 12 32 32
1200239 H1410510-161600 1 25,4 16 1-11 16 38 41
1201219 H1410510-202000 1 1/4 31,8 20 1 1/4-11 20 44,2 50
1200280 H1410510-242400 1 1/2 38,1 24 1 1/2-11 24 46,5 55
1201080 H1410510-323200 2 50,8 32 2-11 32 52,5 70

H1410710 FITTINGs sTANDARD

BsPT Male Tapered AGR K

Hose iD Hose iD F Thread F Thread C CUT-oFF CH1
item Code Part number DAsH
in mm in-TPi Factor Factor mm
1200215 H1410710-121200 3/4 19 12 3/4-14 12 32 27 FITTINGs INTeRLoCK
1200237 H1410710-161600 1 25,4 16 1-11 16 41 36
1200261 H1410710-202000 1 1/4 31,8 20 1 1/4-11 20 46,2 46
1200278 H1410710-242400 1 1/2 38,1 24 1 1/2-11 24 48,0 50
1201220 H1410710-323200 2 50,8 32 2-11 32 53,2 65

H1420812

BsPP Female 60° Cone with o-Ring DKoR ADAPTeRs JIC 37°

Hose iD Hose iD F Thread F Thread C CUT-oFF CH2
item Code Part number DAsH
in mm in-TPi Factor Factor mm
1214247 H1420811-080800 1/2 12,7 08 1/2-14 08 22,5 27
1202424 H1420812-121200 3/4 19 12 3/4-14 12 25,5 32
1202440 H1420812-161600 1 25,4 16 1-11 16 30,2 38 ADAPTeRs oRFs
1201132 H1420812-202000 1 1/4 31,8 20 1 1/4-11 20 33,5 50
1201134 H1420812-242400 1 1/2 38,1 24 1 1/2-11 24 35,0 55
1201136 H1420812-323200 2 50,8 32 2-11 32 33 70 ADAPTeRs BsP

www.alfagomma.com 109 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
