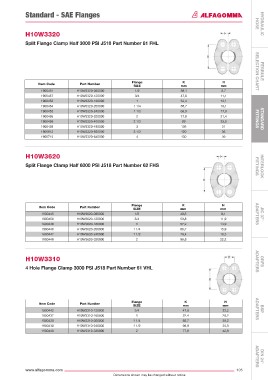

Page 107 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Standard - SAE Flanges

H10W3320 hose hYDRAULIC

split Flange Clamp half 3000 PsI J518 Part Number 61 FhL

Flange K H seLeCTIoN ChART FeRRULe
item Code Part number
siZe mm mm
1900451 H10W3320-080000 1/2 38,1 8,7
1900457 H10W3320-120000 3/4 47,6 11,1
1900452 H10W3320-160000 1 52,4 13,1
1900454 H10W3320-200000 1 1/4 58,7 15,1
1900453 H10W3320-240000 1 1/2 69,9 17,9
1900455 H10W3320-320000 2 77,8 21,4
1900456 H10W3320-400000 2 1/2 89 25,5 FITTINGs sTANDARD
1900458 H10W3320-480000 3 106 31
1900912 H10W3320-560000 3 1/2 120 35
1900715 H10W3320-640000 4 130 39

H10W3620

split Flange Clamp half 6000 PsI J518 Part Number 62 Fhs FITTINGs INTeRLoCK

Flange K H
item Code Part number
siZe mm mm
1900445 H10W3620-080000 1/2 40,5 9,1 ADAPTeRs JIC 37°
1900450 H10W3620-120000 3/4 50,8 11,9
1900446 H10W3620-160000 1 57,2 13,9
1900448 H10W3620-200000 1 1/4 66,7 15,9
1900447 H10W3620-240000 1 1/2 79,4 18,3
1900449 H10W3620-320000 2 96,8 22,2

H10W3310 ADAPTeRs oRFs
4 hole Flange Clamp 3000 PsI J518 Part Number 61 VhL

Flange K H
item Code Part number
siZe mm mm
1900442 H10W3310-120000 3/4 47,6 22,2 ADAPTeRs BsP
1900437 H10W3310-160000 1 52,4 26,2
1900439 H10W3310-200000 1 1/4 58,7 30,2
1900438 H10W3310-240000 1 1/2 69,9 35,8
1900440 H10W3310-320000 2 77,8 42,8

www.alfagomma.com 105 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
