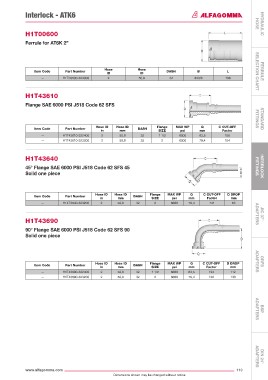

Page 121 - Catálogo de Mangueiras e Conexões Hidráulicas, Adaptadores e Acessórios

Interlock - ATK6

H1T00600 hose hYDRAULIC

Ferrule for AT6K 2”

Hose Hose
item Code Part number DAsH b l seLeCTIoN ChART FeRRULe
iD iD
— H1T00600-320000 2 50,8 32 82/88 108

H1T43610
Flange sAe 6000 PsI J518 Code 62 sFs

Hose iD Hose iD Flange MAX WP Q C CUT-oFF FITTINGs sTANDARD
item Code Part number DAsH
in mm siZe psi mm Factor
— H1T43610-322400 2 50,8 32 1 1/2 6000 63,5 106
— H1T43610-323200 2 50,8 32 2 6000 79,4 104

H1T43640

45° Flange sAe 6000 PsI J518 Code 62 sFs 45 FITTINGs INTeRLoCK
solid one piece

Hose iD Hose iD Flange MAX WP Q C CUT-oFF D DroP
item Code Part number DAsH
in mm siZe psi mm Factor mm
— H14T3640-323200 2 50,8 32 2 6000 79,4 141 63

H1T43690 ADAPTeRs JIC 37°

90° Flange sAe 6000 PsI J518 Code 62 sFs 90
solid one piece

Hose iD Hose iD Flange MAX WP Q C CUT-oFF D DroP ADAPTeRs oRFs
item Code Part number DAsH
in mm siZe psi mm Factor mm
— H1T43690-322400 2 50,8 32 1 1/2 6000 63,5 134 112
— H1T43690-323200 2 50,8 32 2 6000 79,4 132 138 ADAPTeRs BsP

www.alfagomma.com 119 ADAPTeRs DIN 24°
Dimensions shown may be changed without notice
